Granulators/Shredders

We currently have the following granulators or shredders in stock.

<H2>Durl GP 12/9 Granulator</H2>
<UL><LI>Throat opening : 300mm x 225mm</LI>
<LI>Two-bladed rotor - blades inclined to produce scissors action</LI>
<LI>Heavy duty outboard bearings</LI>
<LI>Casing is made of SG Iron, split into two halves, hinged and dowelled for precise location</LI>
<LI>Rotor is driven directly by a four pole 15Kw AC motor via a flywheel for inertia and a coupling</LI>
<LI>Feed hopper is fabricated of steel - can be made to suit particular product, including bottles</LI>
<LI>Feed hopper can be fitted with an air plunger system to handle bottles and light objects</LI>
<LI>The discharge hopper is circular with a rib for bag attachment, or a screw conveyor, belt conveyor, vibrator feeder or air transport system can be used.</LI>
<LI>The granulator can be equipped for simultaneously washing and granulating (SA Pat. APPLN 2003/5636) which obviates the necessity for a separate washing plant.</LI>
<LI>Screen size to suit the application and size of granule required.</LI></UL>

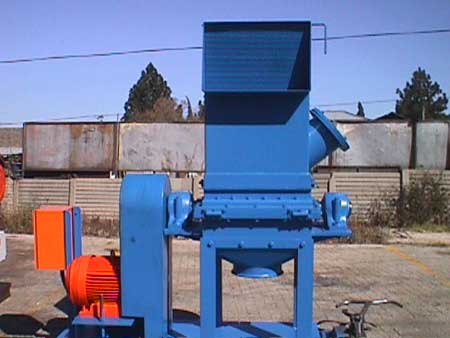

Durl GP 12/9 Granulator

  • Throat opening : 300mm x 225mm
  • Two-bladed rotor - blades inclined to produce scissors action
  • Heavy duty outboard bearings
  • Casing is made of SG Iron, split into two halves, hinged and dowelled for precise location
  • Rotor is driven directly by a four pole 15Kw AC motor via a flywheel for inertia and a coupling
  • Feed hopper is fabricated of steel - can be made to suit particular product, including bottles
  • Feed hopper can be fitted with an air plunger system to handle bottles and light objects
  • The discharge hopper is circular with a rib for bag attachment, or a screw conveyor, belt conveyor, vibrator feeder or air transport system can be used.
  • The granulator can be equipped for simultaneously washing and granulating (SA Pat. APPLN 2003/5636) which obviates the necessity for a separate washing plant.
  • Screen size to suit the application and size of granule required.
<H2>Durl HC 26/15</H2>
<UL><LI>Three-bladed rotor - blades inclined to produce scissors action</LI>
<LI>Heavy duty outboard bearings</LI>
<LI>Casing is made of SG Iron, split into two halves, hinged and dowelled for precise location</LI>
<LI>Rotor is driven directly by a four pole 25-45Kw AC motor via a flywheel for inertia and a coupling</LI>
<LI>Feed hopper is fabricated of steel - can be made to suit particular product, including bottles</LI>
<LI>Feed hopper can be fitted with an air plunger system to handle bottles and light objects</LI>
<LI>The discharge hopper is circular with a rib for bag attachment, or a screw conveyor, belt conveyor, vibrator feeder or air transport system can be used.</LI>
<LI>The granulator can be equipped for simultaneously washing and granulating (SA Pat. APPLN 2003/5636) which obviates the necessity for a separate washing plant.</LI>
<LI>Screen size to suit the application and size of granule required.</LI></UL>

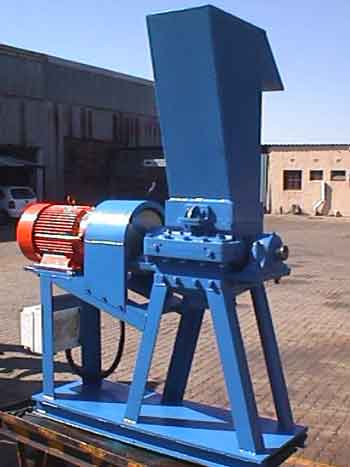

Durl HC 26/15

  • Three-bladed rotor - blades inclined to produce scissors action
  • Heavy duty outboard bearings
  • Casing is made of SG Iron, split into two halves, hinged and dowelled for precise location
  • Rotor is driven directly by a four pole 25-45Kw AC motor via a flywheel for inertia and a coupling
  • Feed hopper is fabricated of steel - can be made to suit particular product, including bottles
  • Feed hopper can be fitted with an air plunger system to handle bottles and light objects
  • The discharge hopper is circular with a rib for bag attachment, or a screw conveyor, belt conveyor, vibrator feeder or air transport system can be used.
  • The granulator can be equipped for simultaneously washing and granulating (SA Pat. APPLN 2003/5636) which obviates the necessity for a separate washing plant.
  • Screen size to suit the application and size of granule required.
<H2>Rapid</H2>
Condition : Refurbished

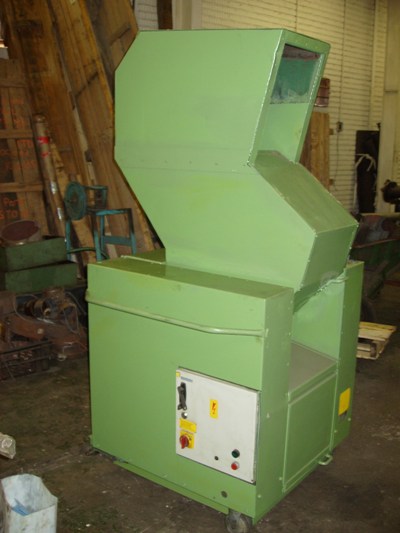

Rapid

Condition : Refurbished
